PON Power Meter with Visual Fault Locator M211141

• This 3 in 1 multi-function PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT.
• The voice, data, video signal(1310/1490/1550) online can be measured synchronously and optical power value(1310/1490/1550) can be displayed with this meter.
• It’s a useful site test tool for the engineers of PON network and maintenance operators.

Key Features

• Handheld, easy to operate
• Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nm
• Can test the burst mode signal of 1310nm

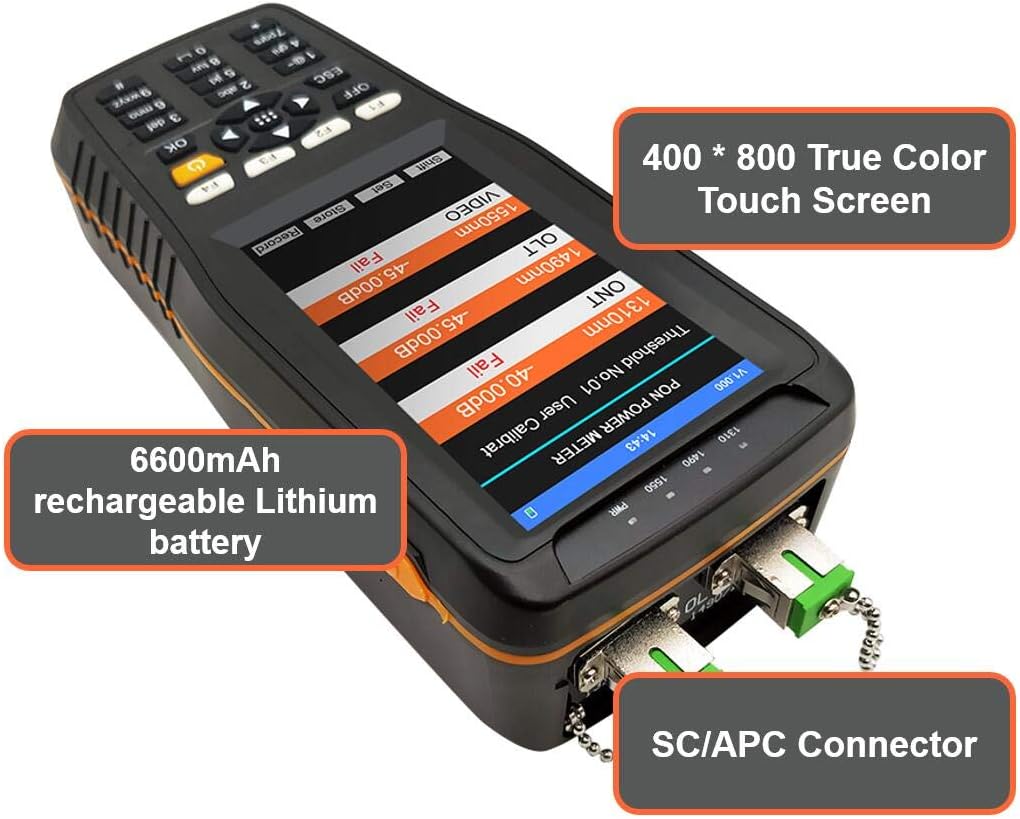

• 480*800, true color touch screen
• Friendly operation interface, human message management and operation function
• Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status
• Relative value choice and edit function
• Can set the threshold value, upload data, and calibrate wavelength through management software
• Auto shut off and Auto backlight off function (according to set value)
• 6600mAh Lithium battery with power saving design (Low voltage self-check and power off)
• Real-time clock display
• Integrated with Optical Power Meter and Visual Fault Locator functions


• Working temperature: -10~60°C
• Storage Temperature: -25~70°C

• Dimensions(mm): 185*80*50

Package Includes

• PON Power Meter
• Carry Case
• Battery Charger
• Management Software CD
• USB Cable
• Factory Test Report
